2.4GHz 802.11ax RF Front-End Module

KCT8246QL

2.4GHz 802.11ax RF Front-End Module

產品介紹

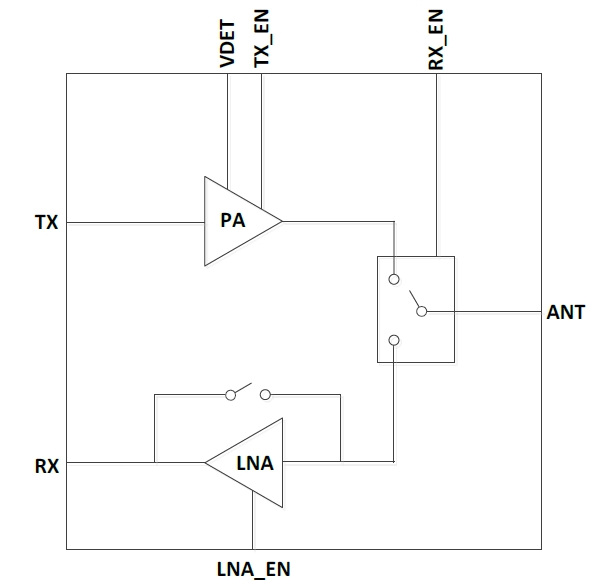

KCT8246QL is a fully integrated 802.11b/g/n/ac/ax WLAN RF front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.



The PA power detector and a digital enable control are also integrated.



KCT8246QL is assembled in a compact, low-profile 3*3*0.55mm 16-pin QFN package. It is the perfect RF front-end solution for implementing 2.4GHz high-performance WLAN systems supporting multiple standards.


產品規格

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 29.5dB at 3.3V

Receive gain: 15dB at 3.3V

Noise Figure: 1.6dB at 3.3V

Output power:

+14dBm @ DEVM=-43dB, HE40/MCS11, 3.3V

+17dBm @ DEVM=-40dB, HE40/MCS11, 3.3V

+19.5dBm @ DEVM=-35dB, VHT40/MCS9, 3.3V

+20.5dBm @ DEVM=-30dB, HT20/MCS7, 3.3V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L, 3×3×0.55mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
