0.1-6.0GHz low insertion loss SPDT RF Switch

KCT2826L

0.1-6.0GHz low insertion loss SPDT RF Switch

Introduction

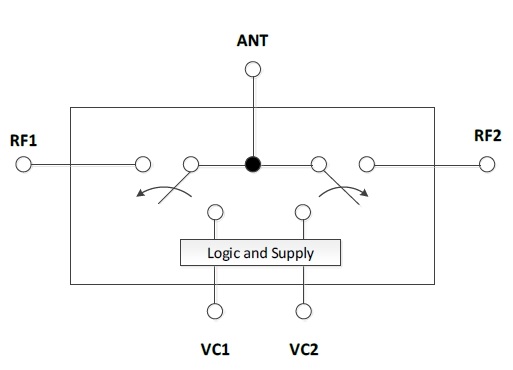

KCT2826L is a single-pole, double-throw SPDT antenna switch, which is operating from 0.1GHz to 6.0GHz frequency range. KCT2826L features low insertion loss, high isolation and positive voltage operating with low power consumption. Due to the excellent performance, KCT2826L is the ideal solutions to be applied in wireless application for IEEE 802.11a/b/g/n/ac transmit/receive function and WLAN systems that operate at 0.1 to 6.0GHz.


Specifications

Broadband frequency range: 0.1-6.0 GHz

Low Insertion Loss: 0.55dB @2.5GHz and 0.80dB @6.0GHz

High Isolation: 34dB at 2.5GHz and 23dB at 6.0GHz

Excellent linearity performance, P1dB = +33dBm

Package: 6L DFN, 1.5 x 1.5x 0.55 mm

RoHS and REACH Compliant, Lead (Pb)-free (MSL3, 260℃per JEDEC J-STD-020)

Very good ESD performance


0.1-6.0GHz low insertion loss SPDT RF Switch
