2.4GHz Low Noise Amplifier with Switch Module

KCT4222L

2.4GHz Low Noise Amplifier with Switch Module

Introduction

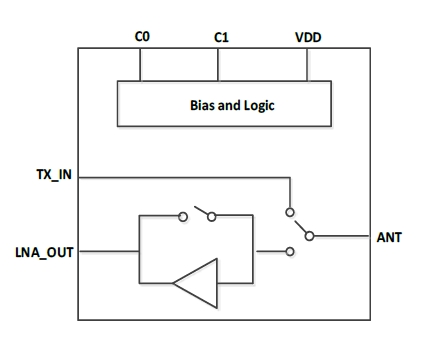

KCT4222L is an integrated Front-End module (FEM) which integrates a low noise amplifier (LNA) with bypass, and single-pole double-throw (SPDT) switch in one device. KCT4222L has a low noise figure (NF) and simple control logic. The device has pins in the switch to LNA path which can add custom filtering.



KCT4222L operates at 3.3V and draws low current. In the transmit mode, a shutdown function saves power when the device is inactive.



KCT4222L is assembled in a compact, low-profile 2.3x2.3x0.55mm 16-pin QFN package. KCT4222L is the ideal RF front-end solution for implementing 2.4GHz high-power WLAN systems supporting multiple standards including 802.11b/g/n/ac.


Specifications

Integrated 2.4GHz LNA with Bypass and SPDT Switch

LNA Gain: 10dB

Noise Figure: 2.5dB

TX/Bypass Mode with 1.5dB Insertion Loss

Input and Output Matched to 50Ω

Break Out Path Between Switch and LNA for Optimal Filter Placement

High Transmit to Receive Isolation for High-power Applications

Small Package: QFN16, 2.3mm x 2.3mm x0.55mm (MSL3, 260℃per JEDEC J-STD-020)

ROHS and REACH Compliant
