2.4GHz 802.11ax RF Front-End Module

KCT8246HE

2.4GHz 802.11ax RF Front-End Module

Introduction

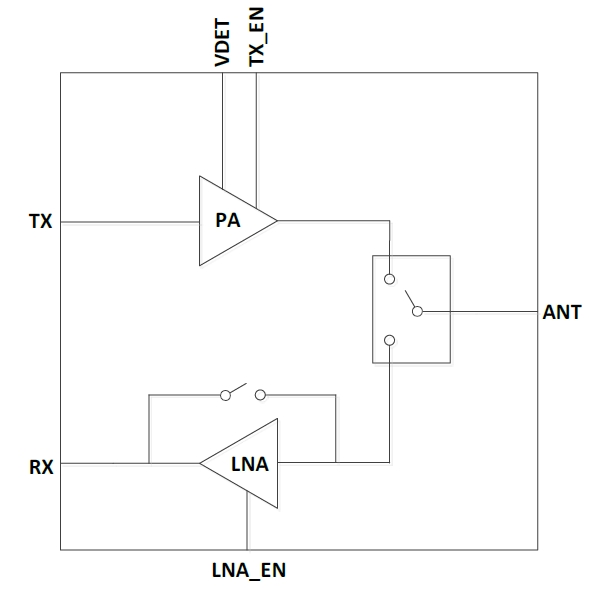

KCT8246HE is a fully integrated 802.11b/g/n/ac/ax WLAN RF front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.



The PA power detector and a digital enable control are also integrated.



KCT8246HE is assembled in a compact, low-profile 3*3*0.55mm 16-pin QFN package. It is the perfect RF front-end solution for implementing 2.4GHz high-performance WLAN systems supporting multiple standards.


Specifications

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Integrated power detector

Output power:

+18dBm @ DEVM=-43dB, HE40/MCS11, 5V

+20.5dBm @ DEVM=-40dB, HE40/MCS11, 5V

+23dBm @ DEVM=-35dB, VHT40/MCS9, 5V

+24dBm @ DEVM=-30dB, HT20/MCS7, 5V

Transmit gain: 30dB at 5V

Receive gain: 16dB at 5V

Noise Figure: 1.5dB at 5V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L, 3×3×0.55mm (MSL3, 260℃ per JEDEC J-STD-020)

ROHS and REACH Compliant


2.4GHz 802.11ax RF Front-End Module
