2.4GHz 802.11ax RF Front-End Module

KCT8276HE

2.4GHz 802.11ax RF Front-End Module

Introduction

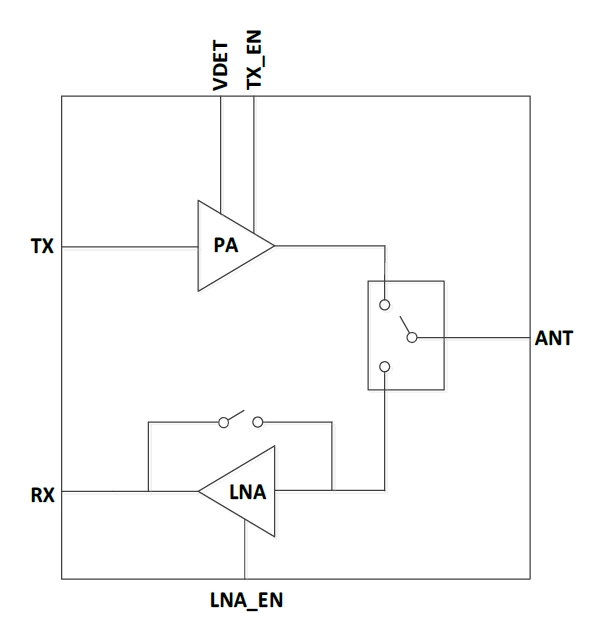

KCT8276HE is a fully integrated 802.11b/g/n/ac/ax WLAN RF front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.



The PA power detector and a digital enable control are also integrated.

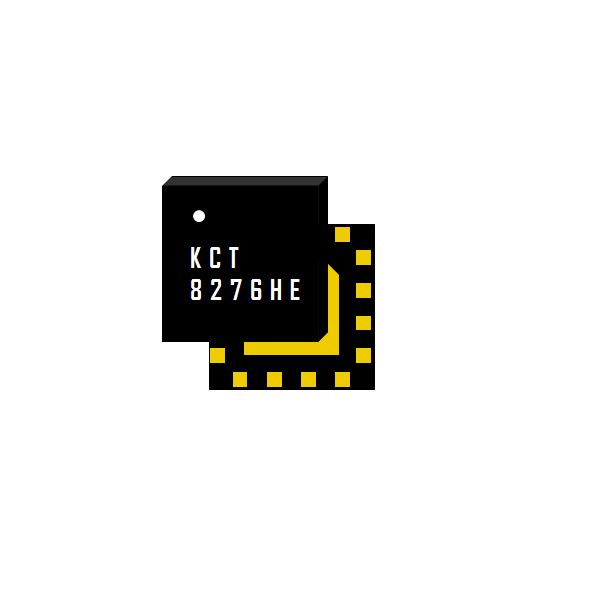

KCT8276HE is assembled in a compact, low-profile 3×3×0.55mm 16-pin QFN package. It is the perfect RF front-end solution for implementing 2.4GHz high-performance WLAN systems supporting multiple standards.


Specifications

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 31.5dB at 5V&3.3V

Receive gain: 16dB at 5V&3.3V

Noise Figure: 1.7dB at 5V&3.3V

Output power:

+21.0dBm @-43dB DEVM, HE40/MCS11, 5V

+22.5dBm @-40dB DEVM, HE40/MCS11, 5V

+24.5dBm @-35dB DEVM, VHT40/MCS9, 5V

+26.0dBm @-30dB DEVM, HT20/MCS7, 5V

Output power:

+18.5dBm @-43dB DEVM, HE40/MCS11, 3.3V

+19.5dBm @-40dB DEVM, HE40/MCS11, 3.3V

+21.0dBm @-35dB DEVM, VHT40/MCS9, 3.3V

+22.0dBm @-30dB DEVM, HT20/MCS7, 3.3V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L, 3mm × 3mm × 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
