Wi-Fi 6E High Power 802.11ax RF Front-end Module

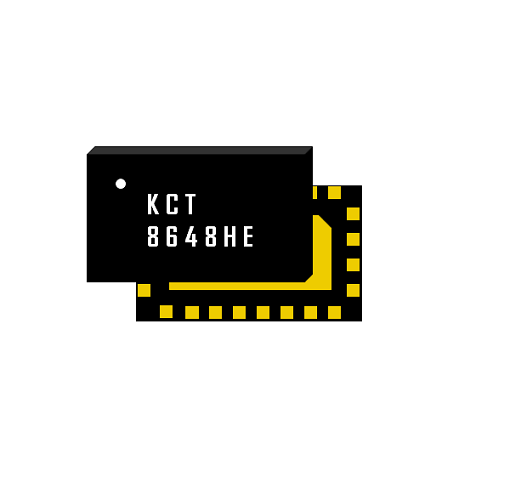

KCT8648HE

Wi-Fi 6E High Power 802.11ax RF Front-end Module

Introduction

KCT8648HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.9-6.4GHz range. KCT8648HE integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.


KCT8648HE has simple and low-voltage control logic, and requires simplified external components. A DC voltage output power detector and a directional RF coupler are integrated for further improve the linearity of the PA.


KCT8648HE is assembled in a compact, low-profile 3x5x0.75mm 24-lead QFN package. KCT8648HE is the ideal RF front-end solution for implementing 6GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.


Specifications

Integrated high performance WIFI 6E PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 30dB

Output power: +17.0dBm @ -43dB DEVM, HE160/MCS11

                        +19.0dBm @ -40dB DEVM, HE160/MCS11

                        +22.5dBm @-35dB DEVM, VHT80/MCS9

                        +23.5dBm @ -30dB DEVM, HT40/MCS7

Receive gain: 13dB

Noise figure: 2.0dB

ESD protection circuitry on all PINs

DC decoupled RF ports

Simplified external components required

Small package: QFN-24L, 3 x 5mm x0.75mm

MSL3, 260°C per JEDEC J-STD-020

RoHS and REACH Compliant
