2.4GHz 802.11ac RF Front-End Module

KCT8226D

2.4GHz 802.11ac RF Front-End Module

Introduction

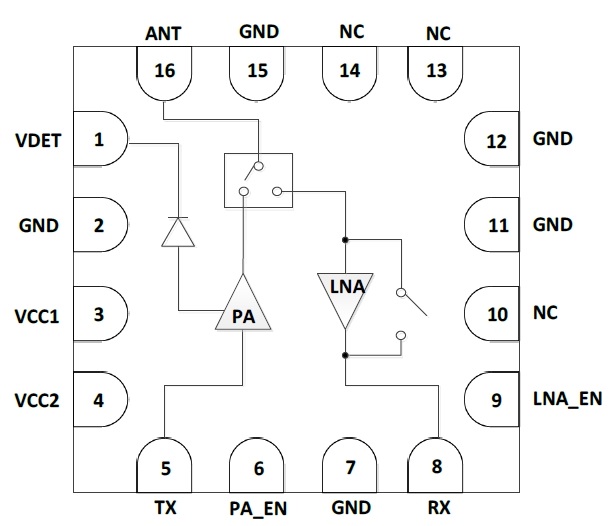

KCT8226D is a fully integrated 802.11b/g/n/ac WLAN RF Front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device. The PA power detector and a digital enable control are also integrated.



KCT8226D is assembled in a compact, low-profile 3×3×0.55mm 16-pin QFN package. It is the perfect RF Front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.


Specifications

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Integrated Power Detector

Output power:

+21.5dBm @ DEVM=-35dB, VHT40/MCS9, 5V

+22.5dBm @ DEVM=-30dB, HT20/MCS7, 5V

Transmit gain: 27.5dB at 5V

Receive gain: 16.5dB at 5V

ESD protection circuitry on all PINs

Minimal External Components Required

Small package: QFN-16L, 3mm × 3mm × 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH Compliant
